Introducing the new
E-Vision 16000i and E-Vision 10000i 4K+ RGB

Performance. Guaranteed.

DLP® powered projectors have set the standard for rock-solid reliability, and have been the benchmark for image quality since their inception.

The new 0.8” DMD gave us the opportunity to harness all the improvements to advance the thing that you have told us matters the most in 1-Chip DLP® projectors – colour!

Amongst other improvements, the DMD has been optimised for the colour red which means when coupled with our Colorboost+Red Laser technology, you get reds that were previously unachievable on a 1-Chip DLP® projector. All these changes means that the colour space far exceeds REC709, making this one of the most powerful 1-Chip DLP projectors on the market today.

Discover the E-Vision 16000i WUDiscover the E-Vision 10000i 4K+ RGB

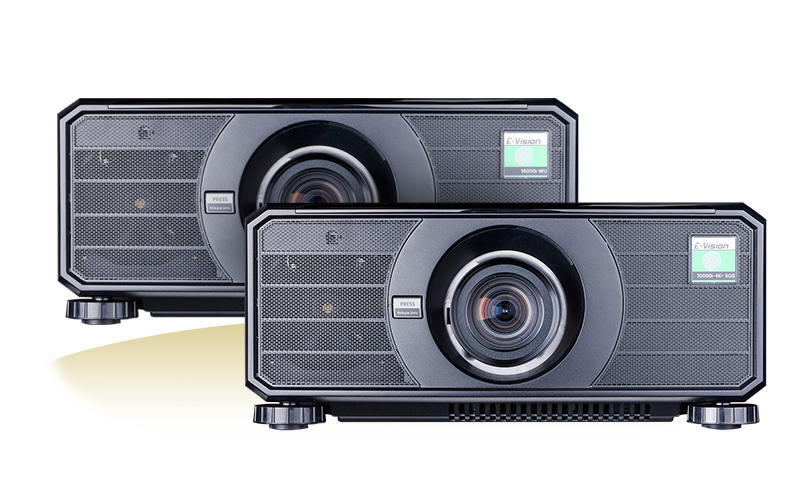

E-Vision 10000i and 16000i

5 Reasons Why

  • 5 Year Warranty

    Standard 5 Year Warranty

    Complete peace of mind.

    Click Here
  • IP6X Sealed Optics

    IP6x Sealed Optics

    Extended light output and colour performance.

  • Nexus with Advanced Align

    Nexus with Advanced Align

    Advanced processing and geometry.

    Click Here

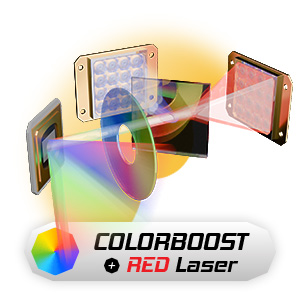

  • ColorBoost + Red Laser

    ColorBoost + Red Laser

    For the widest possible colour gamut.

    Click Here

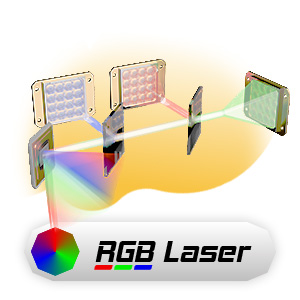

  • RGB Laser

    RGB Laser

    Unmatched colour accuracy and performance.

    Click Here

The E-Vision 16000i and E-Vision 10000i 4K+ RGB both utilise Texas Instruments (TI) all new 0.8” HEP DMD, which brings a host of exciting features to elevate your viewing experience. Completely redesigned, the new DMD has an increased tilt angle which gives better efficiency and can be used to increase brightness and contrast. The DMD also features new filled via which also reduces the scattering of light that results in increased native contrast. Amongst other improvements, the DMD has been optimised for the colour red to which means that, when coupled with our Colorboost+Red Laser and RGB Laser technology, you get reds that were previously unachievable on a 1-Chip DLP projector. All these changes means that the colour space far exceeds REC709, making this one of the most powerful 1-Chip DLP projectors on the market today.

Specifications

  • Brightness Efficiency

    74%

  • Resolution

    1920×1200 (16000i) 3480×2400 (10000i)

  • Hours of Illumination

    20.000

  • Contrast

    10.000:1 (10000i) 20.000:1 (16000i)

  • Lumens

    10.000 (10000i) 16.000 (16000i)

  • Dust Proof

    IP6X

  • DMD Chip

    0.8″ HEP

  • Platform

    Nexus

Major Achievement

The E-Vision 16000i achieves 123% of the REC 709 Colour space and 90% of DCI P3 – all from a 1-Chip DLP projector.

  • 0.8" HEP DMD Improved Contrast

    Improved Contrast

    Significantly improved contrast with Filled Mirror Via enhances image quality by reducing light leakage, resulting in deeper blacks and more vibrant colours.

  • 0.8" HEP DMD Improved Red Colours

    Better Reds and Colours

    Providing better reds and wider colour gamut with Improved DMD diffraction efficiency for red LED and red laser.

  • Pond of Mirrors

    Invisible Pond of Mirrors

    Easier blending with invisible Pond of Mirrors (POM) – the newly designed POM matches the off-state pixel colour.

  • 74 Percent

    More Light In = More Light Out.

    A greener option that offers higher lumens output per watt. The 0.8” HEP DMD captures more light with optimised mirrors, achieving 66% to 74% brightness efficiency.

  • 85 Percent

    More Efficient

    The HEP pixel provides >85% diffraction efficiency for LED, RGB laser and laser-phosphor which allows for more efficient projectors across the DLP markets from 1500lm to >20,000lm projectors.

  • Etendue

    High Etendue

    Etendue is the ability of a source to emit light or the ability of an optical system to accept light. The new HEP DMD has a balanced tilt angle and area to achieve high etendue at minimal cost.

Our Vision

HEP optical benefits and improvements:

  • Higher operating margins improve lifetime, reliability, and optical power handling
  • Hermetic package for improved lifetime, high power and humid environments
  • Improved mirror fill factor leads to improved DMD efficiency
  • POM and off state mirrors are now at the same level of contrast for better edge blending
  • Pixel capable of enhanced mirror reflectivity
  • HEP provides opportunity to win on picture quality and colour

Next Steps:

We challenge you to compare the image quality, the colour and contrast of our new 0.8” HEP range against any other technology – the improvements, coupled with the proven reliability and long lifetime of TI’s DLP® technology make these projectors a genuinely huge leap forward in projection technology.

DLP® is a trademark of Texas Instruments Incorporated.
