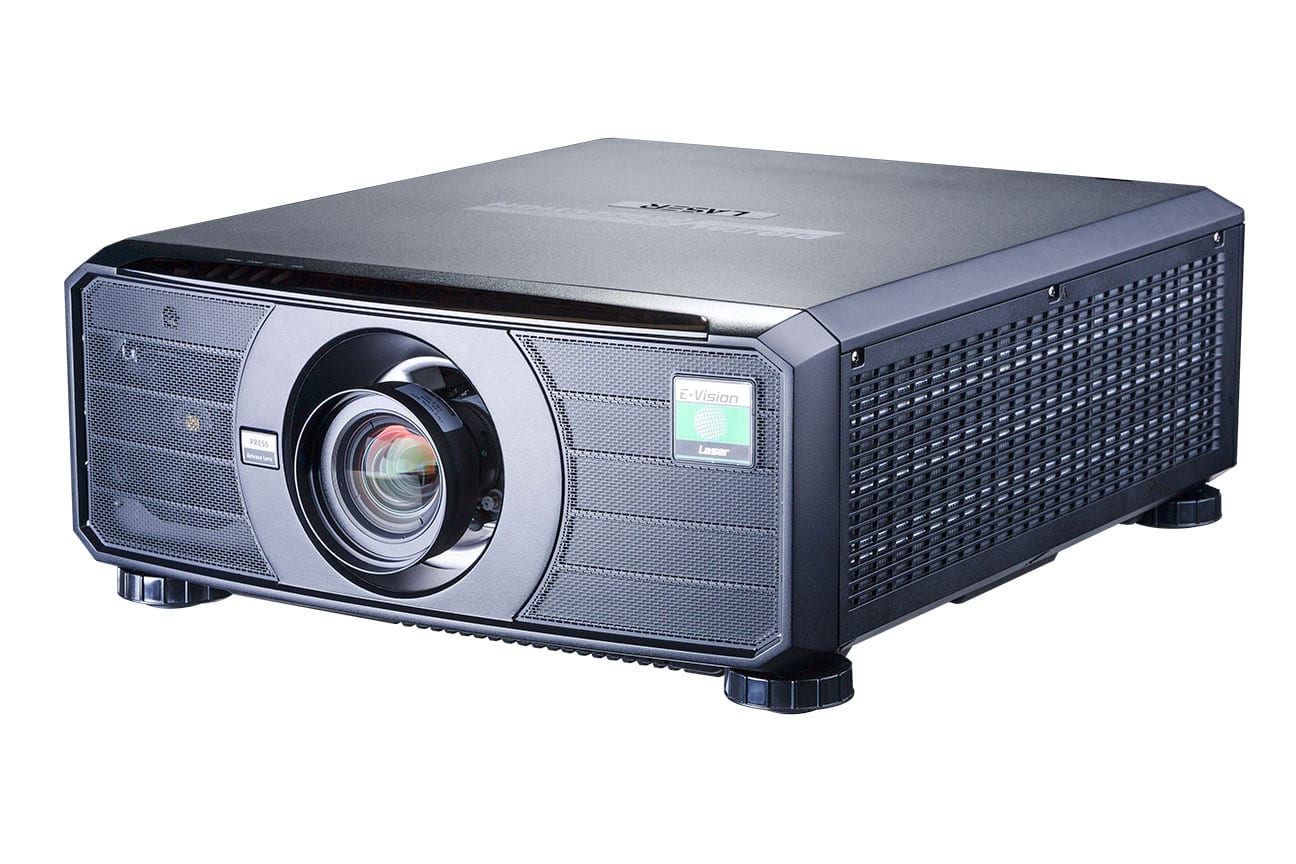

E-Vision 7010-WU

Exceptional Value & Class Leading Performance 1-DLP Laser Projectors

Brightness
7,000 ISO / 6,300 ANSI Lumens
Resolution
1920 x 1200 pixels native resolution.
DMD chip
1 x 0.67" DarkChip™ DMD™
Light source
Laser Phosphor
Overview

E-Vision 7010-WU

For maximum flexibility, the E-Vision 7010-WU can be operated in both Portrait and Landscape mode, pointing up and down and every angle in between

E-Vision Laser 5900 Projector
Key features

Key Features

  • 7,000 Lumens
  • WUXGA Resolution
  • 500,000:1 Advanced Black Contrast
  • Part Number: 123-846
  • 7000 Lumens
Downloads

Downloads

Part Number
Spec Sheet
Request Documentation
Technical specifications

Tech Spec

Brightness
7,000 ISO / 6,300 ANSI Lumens
Contrast
2,200:1 Native Contrast. 20,000:1 Dynamic. 500,000:1 Advanced Black
Colour System
Laser Phosphor
DMD
1 x 0.67" DarkChip™ DMD™
DMD Specification
  • 1920 x 1200 pixels native resolution.
  • Fast transit pixels for smooth greyscale and improved contrast.
Aspect Ratio
16x10
Colour Temperature
  • Warm
  • Normal
  • Cold
Orientation
  • Table Top or Inverted: Yes
  • Pointing Up: Yes
  • Pointing Down: Yes
  • Roll (Portrait): Yes
Light Source
Laser Light Source
Light Source Life
20,000 hours
Power Requirements
100-240VAC 50/60Hz single phase 5.3A
Weight
12 kg / 26.45 lbs
Dimensions
  • L: 44.6 cm W: 36.0 cm H: 16.7 cm
  • L: 17.54 in W: 14.17 in H: 6.57 in
Engineering

Core Technologies

MultiAxis Orientation

MultiAxis Orientation

For maximum flexibility, the E-Vision 7010-WU can be operated in both Portrait and Landscape mode, pointing up and down and every angle in between

Geometry Correction

Geometry Correction

The E-Vision 7010-WU has built in Vertical keystone correction which allows the correction of the image when the projector is mounted at an angle

3 Year Warranty in EMEA

3 Year Warranty in EMEA

Due to the proven reliability and long-term performance of our precision displays, Digital Projection provides a full 3 years of parts and labour coverage for projectors employed in standard use applications.

Request a quote

Request More Info

If you need more information or a call back from our team, please fill in the form below and your local business development manager will get back to you.

  • MultiAxis Orientation

    MultiAxis Orientation

    For maximum flexibility, the E-Vision 7010-WU can be operated in both Portrait and Landscape mode, pointing up and down and every angle in between

  • Geometry Correction

    Geometry Correction

    The E-Vision 7010-WU has built in Vertical keystone correction which allows the correction of the image when the projector is mounted at an angle

  • 3 Year Warranty in EMEA

    3 Year Warranty in EMEA

    Due to the proven reliability and long-term performance of our precision displays, Digital Projection provides a full 3 years of parts and labour coverage for projectors employed in standard use applications.
