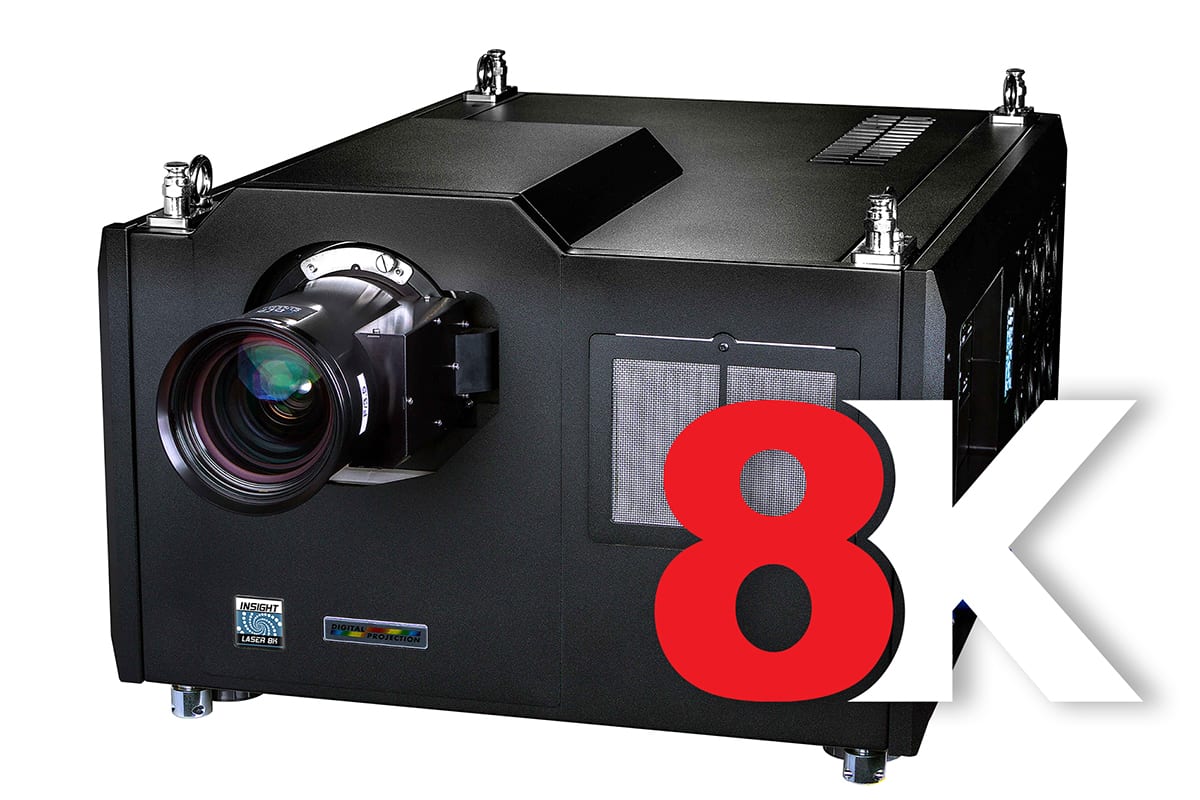

INSIGHT LASER 8K (Gen II)

The Ultimate Visual Experience

Brightness
37,000 ISO Lumens
Resolution
Displays 8K-UHD 7680x4320, 4096 x 2160 native
DMD chip
3 x 1.38" DarkChip 3 DMD, +/- 12° tilt angle
Light source
Laser Phosphor with ColorBoost + Red Laser
Overview

INSIGHT LASER 8K (Gen II)

Digital Projection is always pushing to innovate and improve the quality of our remarkable visual solutions. Toward that end, we are pleased to announce that most of our award-winning laser projectors are now TAA compliant*. We are confident that this will provide more choices and options for those wanting the very best in projection technology.

INSIGHT LASER 8K (Gen II)
Key features

Key Features

  • 8K Resolution (7680 X 4320)
  • Up to 37,000 lumens
  • Smear Reduction Technology
  • 20,000 hours of system illumination
  • 3 x 1.38″ DarkChip™ DMD™
Downloads

Downloads

Part Number
Technical specifications

Tech Spec

Brightness
37,000 ISO Lumens
Resolution
Displays 8K-UHD 7680x4320, 4096 x 2160 native
Colour System
Laser Phosphor with ColorBoost + Red Laser
Display Type
3 x 1.38" DarkChip 3 DMD, +/- 12° tilt angle
Contrast
2,000:1 Native
Aspect Ratio
1.9:1
Fill Factor
87%
Light Source Life
20,000 hours
Orientation
Table Top or Inverted, Pointing Up, Pointing Down, Roll (Portrait)
Part Number
120-783
Engineering

Core Technologies

TAA Compliant

TAA Compliant

Digital Projection is always pushing to innovate and improve the quality of our remarkable visual solutions. Toward that end, we are pleased to announce that most of our award-winning laser projectors are now TAA compliant*. We are confident that this will provide more choices and options for those wanting the very best in projection technology.

Full 8K Resolution

Full 8K Resolution

The INSIGHT LASER 8K offers 8K resolution (7680 X 4320), surpassing that of any DLP projector currently available.

Lamp Free

Lamp Free

The INSIGHT LASER 8K is a lamp-free projector meaning extensive savings on expensive maintenance and replacement cycles.

3 Year Warranty in the Americas

3 Year Warranty in the Americas

Due to the proven reliability and long-term performance of our laser projectors, Digital Projection provides a full 3 years / 20,000 hours warranty.

20,000 Hours Illumination

20,000 Hours Illumination

The laser light source lasts for 20,000 hours, giving stable and predictable illumination that far exceeds any lamp based product.

Projector Controller Software

Projector Controller Software

Projector Controller software allows full management and operation of multiple projectors from a single centralized PC-based application. Ideal for use in large installations or where projectors are installed in multiple locations within a building, the software can dramatically reduce the time required for set up and configuration.

Request a quote

Request More Info

If you need more information or a call back from our team, please fill in the form below and your local business development manager will get back to you.

  • TAA Compliant

    TAA Compliant

    Digital Projection is always pushing to innovate and improve the quality of our remarkable visual solutions. Toward that end, we are pleased to announce that most of our award-winning laser projectors are now TAA compliant*. We are confident that this will provide more choices and options for those wanting the very best in projection technology.

  • Full 8K Resolution

    Full 8K Resolution

    The INSIGHT LASER 8K offers 8K resolution (7680 X 4320), surpassing that of any DLP projector currently available.

  • Lamp Free

    Lamp Free

    The INSIGHT LASER 8K is a lamp-free projector meaning extensive savings on expensive maintenance and replacement cycles.

  • 3 Year Warranty in the Americas

    3 Year Warranty in the Americas

    Due to the proven reliability and long-term performance of our laser projectors, Digital Projection provides a full 3 years / 20,000 hours warranty.

  • 20,000 Hours Illumination

    20,000 Hours Illumination

    The laser light source lasts for 20,000 hours, giving stable and predictable illumination that far exceeds any lamp based product.

  • Projector Controller Software

    Projector Controller Software

    Projector Controller software allows full management and operation of multiple projectors from a single centralized PC-based application. Ideal for use in large installations or where projectors are installed in multiple locations within a building, the software can dramatically reduce the time required for set up and configuration.

Next steps

Looking for more information or guidance?

Proof in the field

E-Vision projectors in action

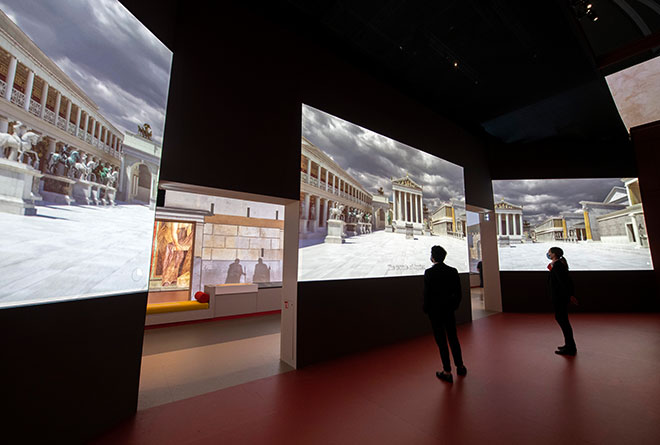

Pompeii immersive exhibition at the Grand Palais
