0.8″ HEP DMD

Bringing a host of exciting features to elevate your viewing experience.

Overview

Overview

The E-Vision 16000i utilises Texas Instruments Incorporated (TI) all new 0.8” HEP DMD, which brings a host of exciting features to elevate your viewing experience.

Completely redesigned, the new 0.8” HEP DMD has an increased tilt angle which gives better efficiency and can be used to increase brightness and contrast.

The DMD also features new filled via which also reduces the scattering of light that results in increased native contrast.

Amongst other improvements, the DMD has been optimised for the colour red which means when coupled with our Colorboost+Red Laser technology, you get reds that were previously unachievable on a 1-Chip DLP® projector. All these changes means that the colour space far exceeds REC709, making this one of the most powerful 1-Chip DLP projectors on the market today.

Download the HEP DMD Whitepaper (PDF)

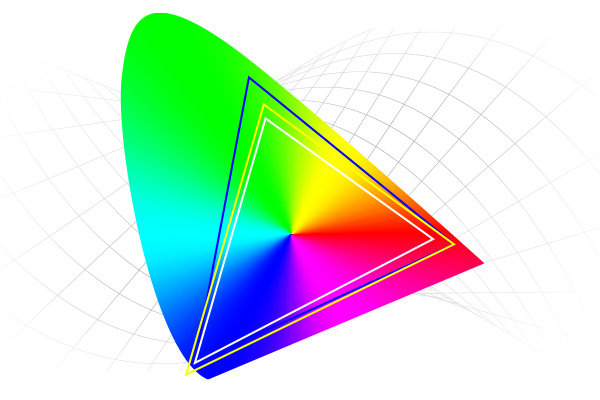

REC 709 Colour Spectrum 0.8″ HEP DMD from Digital Projection
DCI P3 (D65) · E-Vision 16000i WU · REC 709

Major Achievement

The E-Vision 16000i achieves 123% of the REC 709 Colour space and 90% of DCI P3 – all from a 1-Chip DLP projector.

Overview

Key Features

  • 0.8″ HEP DMD Improved ContrastSignificantly improved contrast with Filled Mirror Via (FMV).
  • 0.8″ HEP DMD Improved Red ColoursProviding better reds and wider colour gamut with Improved DMD diffraction efficiency for red LED and red laser.
  • Pond of MirrorsEasier blending with invisible Pond of Mirrors (POM) – the newly designed POM matches the off-state pixel colour.
Overview

More, More and More

74 Percent
Put simply – more lumens per watt, making this the greener choice. The slightly larger 9.0um pixel pitch is the perfect combination of size and performance. This new 0.8” HEP DMD captures more light and the mirror size and tilt angle for the HEP DMDs is optimised for efficiency in ALL colours, red, green and blue. This Improved Optical efficiency Gives an overall Brightness efficiency of 66% to 74%, more light in = more light out.
85 Percent
More efficient – The HEP pixel provides >85% diffraction efficiency for LED, RGB laser and laser-phosphor which allows for more efficient projectors across the DLP markets from 1500lm to >20,000lm projectors.
Etendue
High Etendue – Etendue is the ability of a source to emit light or the ability of an optical system to accept light. The new HEP DMD has a balanced tilt angle and area to achieve high etendue at minimal cost.
Overview

Our Vision

HEP optical benefits and improvements:

  • Higher operating margins improve lifetime, reliability, and optical power handling
  • Hermetic package for improved lifetime, high power and humid environments
  • Improved mirror fill factor leads to improved DMD efficiency
  • POM and off state mirrors are now at the same level of contrast for better edge blending
  • Pixel capable of enhanced mirror reflectivity
  • HEP provides opportunity to win on picture quality and colour

Next Steps:

We challenge you to compare the image quality, the colour and contrast of our new 0.8” HEP range against any other technology – the improvements, coupled with the proven reliability and long lifetime of TI’s DLP technology make these projectors a genuinely huge leap forward in projection technology.

DLP® and DMD are trademarks of Texas Instruments Incorporated.
